Pre Painted Galvanized Aluminum Zinc Coated Steel Coil

Galvanized steel coil is a kind of steel coil that immersed in the dissolved zinc bath to adhere to the surface with a layer of zinc.
At present, the main method is to make galvanized steel coil be dipped in a bath with dissolved zinc.
The commonly used specifications of galvanized roll are 0.12mm-3mm and Zinc coated from Z60,Z80,Z275g/m2.

Classification :

Galvanized Steel Coil

+8615562508601

cnxh001@xhsteelgroup.com

E-mail

Send Email to me

Product

Specifications:

Product Name	Pre Painted Galvanized Aluminum Zinc Coated Steel Coil
Grade	SGCC, SGCD, SGCE
	DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z
	S250GD+Z,S280GD+Z, S350GD+Z,S550GD+Z
Standard:	AISI, ASTM, BS, DIN, GB, JIS
Zinc coated:	30g/m2-275g/m2
Spangle	Zero spangles, Small spangles, Regular spangles, Big spangles
Surface treatment	Chromated, oiled/non-oiled and anti-finger printing
Thickness	0.12-2.0mm
Width	600-2,000mm
Coil Weight	3 - 5 tons (can be customized)
Certificates	SGS, BV, ISO 9001
Supply Ability	40000MT/month
MOQ	5MT
Package	Standard export package
Substrate	Hot rolled steel/Cold rolled steel
Tolerance	Thickness: 0.01 mm
Tolerance	Width: 2 mm
ID	508mm - 610mm
Trade Term	FOB, CFR, CIF
Payment terms	T/T, L/C at sight, West Union, D/P, D/A, Paypal
Delivery time	7-14 days after confirmed order
Container size	20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
	40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
	40ft HC: 12032mm(Length)x2352mm(Width)x2698mm(High)

Galvanized Steel Coil Types

According to the processing method, we divide galvanized steel into the following categories:

1. Hot-dip Galvanized Steel Coil

As the name implies, hot-dip galvanizing is immersing the cleaned iron sheet into the molten zinc bath at about 500 degrees to form a zinc layer. It is the most commonly used method. It has some advantageous features:

1) The entire steel surface is uniformly covered with a zinc layer, even the corners, hollows, etc. so that the steel sheet is fully protected.

2) The cost of hot-dip galvanizing is cheap.

2. Electro-galvanized Steel Coil

Electro-galvanizing is a process of applying a layer of zinc to steel through electroplating, with a saline anode and steel conductor. It is able to enhance the corrosion and heat resistance of steel. Also, it makes steel sheets more good-looking.

Storage video

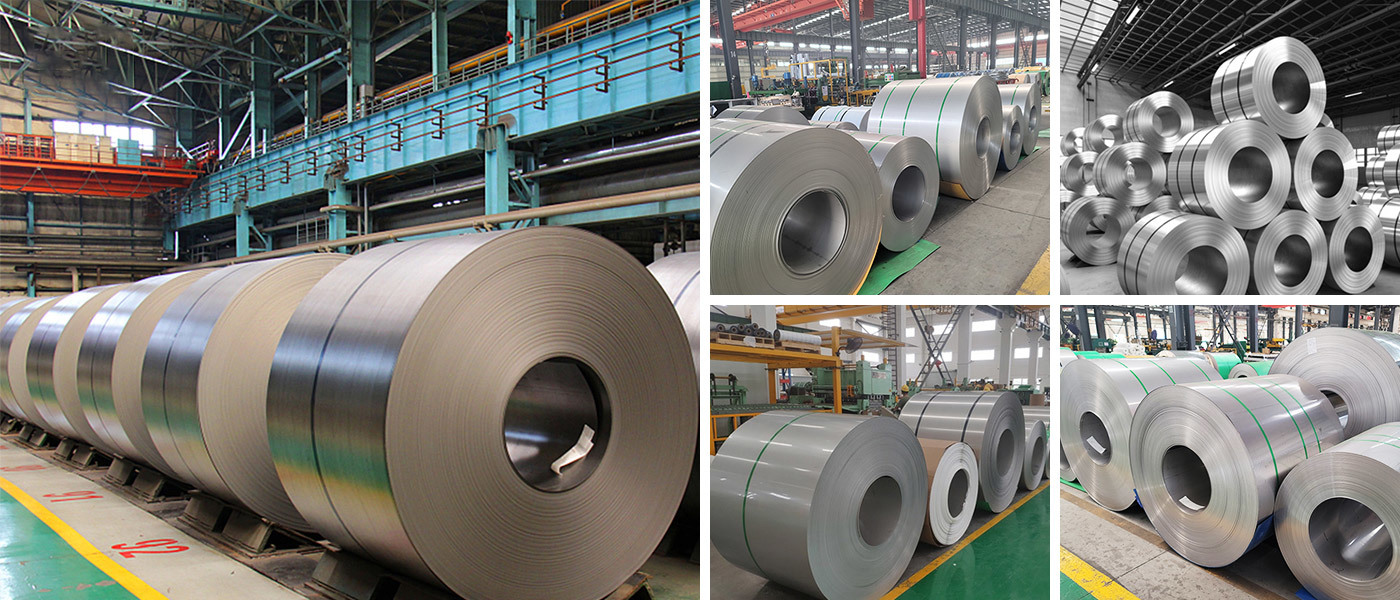

Warehouse storage

The group company and factory cover an area of more than 800 mu, with more than 1,500 employees, and its business covers more than 20 countries and regions around the world. Xinghan Group is committed to developing new types of steel products and building a first-class coated sheet and steel manufacturing enterprise with international competitiveness. Xinghan Group hopes to grow into a widely respected and sustainable global resource-based enterprise through continuous pursuit of excellence, create better social, economic and environmental benefits, and bring more competitive value returns to employees and customers.

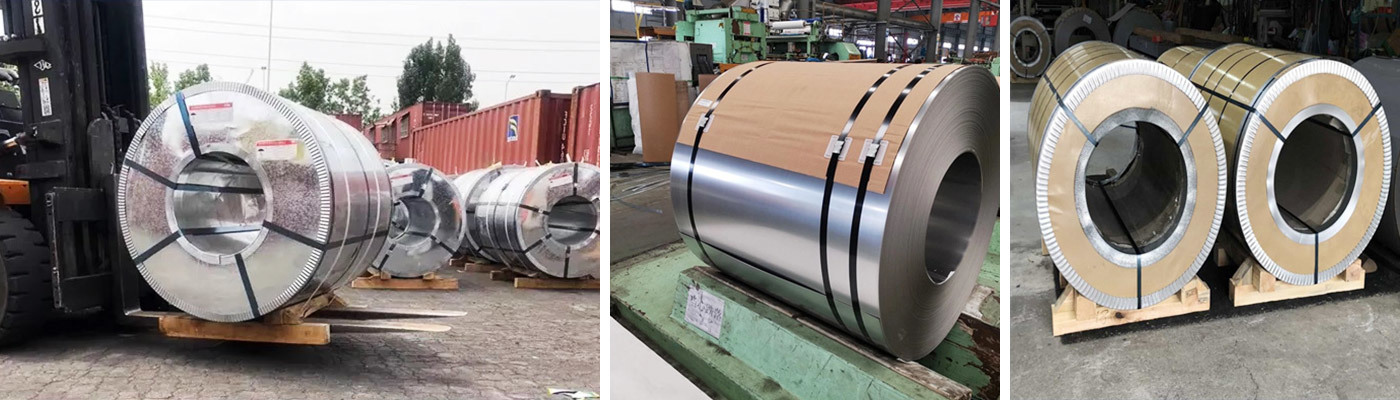

Packing and delivery

The company has major production lines such as pickling, cold rolling, hot dip galvanizing, hot dip galvanizing, thick plate galvanizing and color coating, forming an annual production capacity of 1 million tons of pickling coil, 1 million tons of cold rolled sheet and 900,000 tons of hot dip galvanized sheet. Galvanized and hot-dip galvanized aluminum zinc silicon steel sheet scale 450,000 tons thick galvanized steel plate scale 300,000 tons color coated steel plate scale is one of the largest steel and non-ferrous metal smelting and processing suppliers in Shandong Province.

Customer visit
The company adheres to the development strategy of "seeking development by science and technology, seeking efficiency by management", adheres to the core values of "people-oriented, integrity, responsibility and excellence", adheres to the development system of "green products and green industry", "promotes high-quality beyond development in an all-round way", and realizes the vision of "building a first-class aluminum processing service enterprise with international competitiveness".

Application field

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.

COOPERATIVE PARTNER

FAQ

Q:How long is your delivery time?

A:Within 5 days for stock size, 15-30 days for customized size.

Q:How can I get an accurate quote?

A:Please provide the information of prodcuts standard, material, size and quantity.

Q:When can I get your reply after the inquiry.

A:Within 15 minutes during working time, whthin 12 hours during non-working time.

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness,coating and the number of tons you need to purchase.

Q:Can you provide sample ?

A: We can provide the samll samples in stock for free, as long as you contact us. Customized samples will take about 5-7days.

Q:How many coutries you already exported ?

A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q: Can we visit your factory?

A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
